Use Case: Configuring Tmedia M3UA SGP for Shared Point Code

Applies to version(s): v3.0 and above

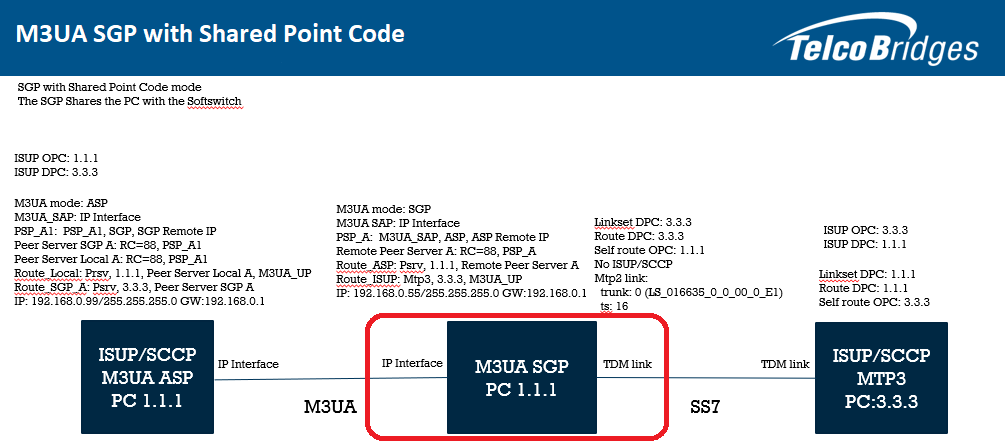

This configuration is a standard signaling gateway from MTP2/MTP3 to M3UA Application Server Process (ASP)

Configure MTP2	Configure MTP3	Configure IP Interface	Configure SCTP	Configure M3UA
Configure MTP2 Configure MTP2 Link	Configure MTP3 Configure an MTP3 Network Configure MTP3 Point Codes In this use case, the following point code names are assigned: destination point code: dpc333 origination point code: opc111 Configure an MTP3 Linkset Configure MTP3 Links Configure an MTP3 Route	Configure IP Interface In this use case, configured as: IP Address: 192.168.0.55 Netmask: 255.255.255.0 Gateway: 192.168.0.1	Configure SCTP	Configure M3UA Create an M3UA SAP Create an M3UA Network Create an M3UA User Part Create an M3UA Peer Signalling Process Create an M3UA Peer Server Create an M3UA Route
