Creating an M3UA Peer Signalling Process

Applies to version(s): v3.0

To create an M3UA Peer Signalling Process (PSP):

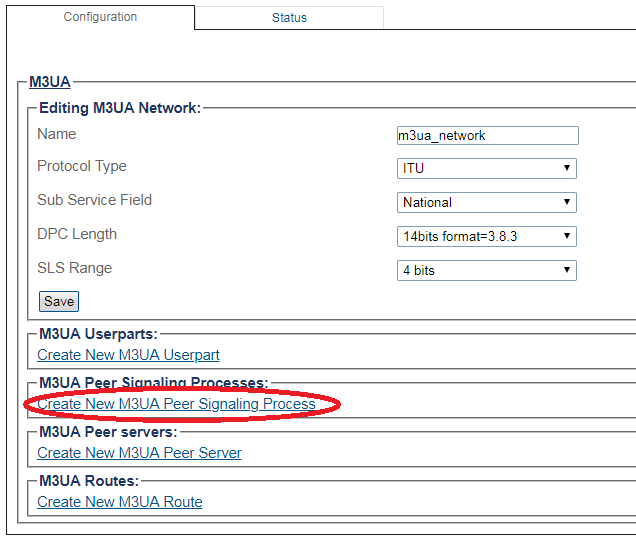

1- Click Create New M3ua Peer Signaling Process in the M3UA network configuration window:

2- Configure the new M3UA PSP:

• Enter a name for the PSP
• Select Application Server Process (ASP) as the PSP type
• Enter a destination port (as configured in the destination element)
• Click Create

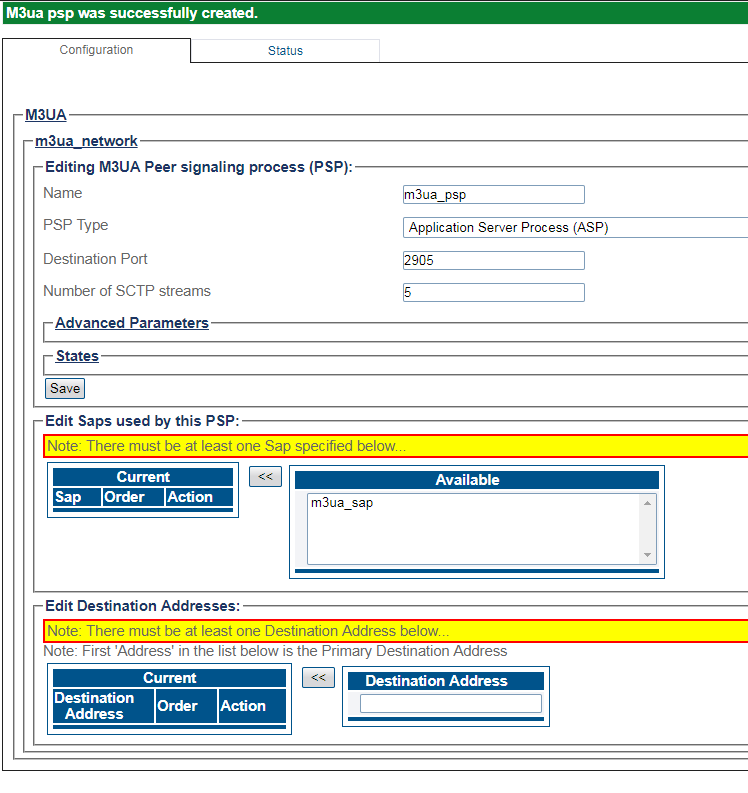

3- Verify that the "M3ua PSP was successfully created" message appears

4- Associate a SAP with the new PSP:

• Select a SAP from the list of available SAPs
• Click the "<<" button to associate it with the PSP

5- Enter a destination address for the PSP:

• Enter a destination address
• Click "<<" to add the destination address to the PSP

List of Parameters

• Name
• PSP Type
• Destination Port
• Number of SCTP Streams

• Initiate SCTP association
• IPSP Double Ended
• Send RK registration request
• Allow dynamic registration of RK
• Load Sharing Mode
• Network Appearance
• Network Appearance Value
• ASP Id Mode
• Self ASP Id
• Configure for all local IPs
• SG Id
• Routing Context Mandatory
• Include Routing Context
• Allow Re-register
• IP Header Type of Service (ToS)
