ISDN Status
| This article applies to: | Product | Version |
| Tmedia | 2.9, 2.10, 3.0, 3.2 |
This article illustrates how to view ISDN status and to set a periodic refresh of the ISDN protocol stack. This is done from the Status menu and the Navigation panel.
1- Click Status in the navigation panel.
2- Click the ISDN tab.
The status of the ISDN protocol stack is displayed.
1- Click ISDN from the navigation panel.
2- Click the Status tab.
3- The ISDN Stack status is displayed.
- To configure a periodic refresh of the ISDN status, select a value from Refresh Every.

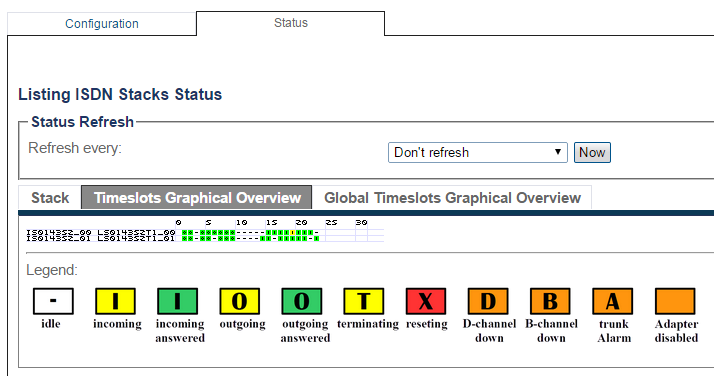

4- To view the status of the ISDN timeslots, click Timeslots Graphical Overview.

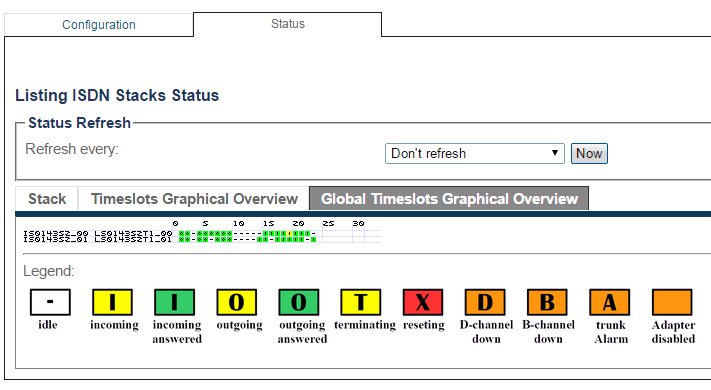

5- To view a global view of the ISDN timeslots, click Global Timeslots Graphical Overview
Path
/configurations/@[configuration_name]/hardware_units/@[hardware_name]/isdn_stacks/@[isdn_stack]/status
