Toolpack v2.4:Create an M2UA SAP

To create an M2UA SAP:

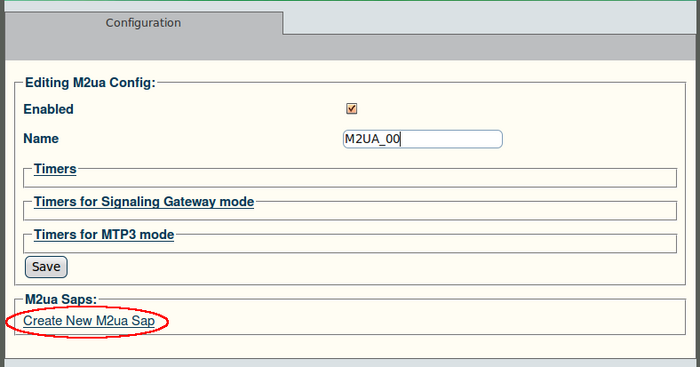

1. Click "Create New M2ua Sap" in the M2UA configuration window:

2. Configure the new M2UA SAP:

  • Enter a name for the new SAP
  • Enter a number for the SCTP source port
  • Click "Create" to finalize the configuration

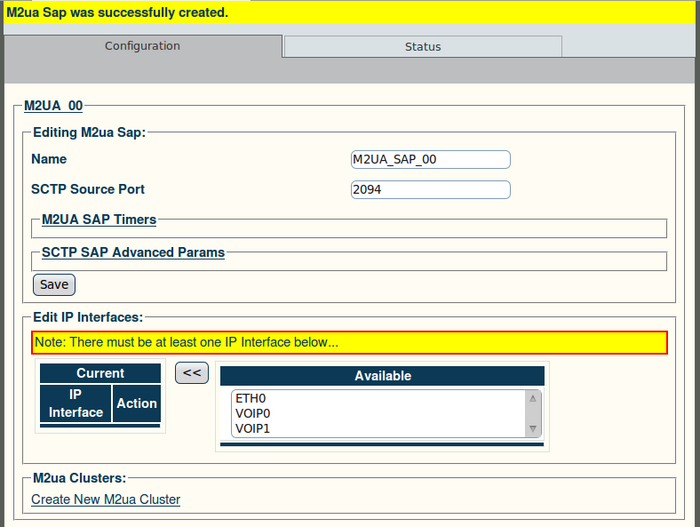

3. Verify that the "M2ua Sap was successfully created" message appears:

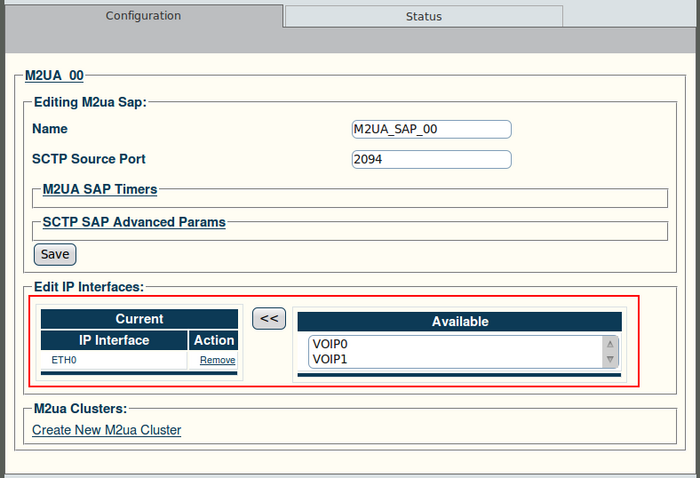

4. Associate an IP interface with the new SAP:

  • Select an IP interface from the "Edit IP Interfaces" list
  • Associate the interface with the SAP, using the "<<" button
