Toolpack v2.4:Create an M2UA Cluster

To create an M2UA cluster:

1. Click "Create New M2ua Cluster" in the M2UA SAP configuration window:

2. Configure the new M2UA cluster:

• Enter a name for the cluster
• Select a traffic mode:
  • ACTIVE_STANDBY
  • LOADSHARE
• Select a load share mode:
  • PER_LINK
  • ROUND_ROBIN
• Click "Create" to finalize the configuration

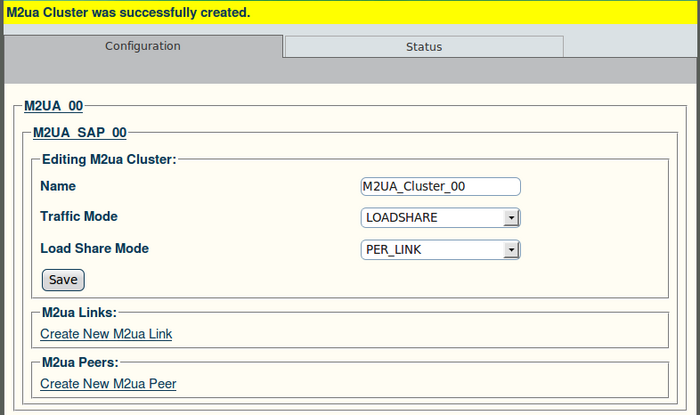

3. Verify that the "M2ua Cluster was successfully created" message appears:
