Toolpack v2.3:Create an SCCP Userpart

The Userpart is the container for the multiple SCCP interfaces. One Userpart is required for each protocol variant.

multiple SCCP userpart can be instantiated within a single SCCP protocol layer. This allows a user application to interface with multiple SS7 SCCP protocol variants at the same time. Only one SCCP userpart is required for a specific variant as it can be assigned to multiple SCCP networks.


A Userpart can easily be seen as a protocol variant that a host application wants to use on the SS7 network.


To Create an SCCP User Part

1. Click 'Create New SCCP User Part' to access the SCCP configuration window.



2. Enter a name for the SCCP user part.

  • Select a protocol variant
  • Click 'Create' to save the changes

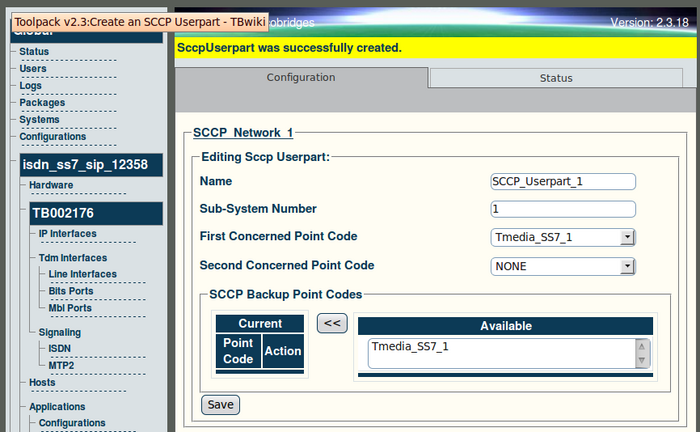

3. Verify that the 'SCCP Userpart was successfully created' message appears.

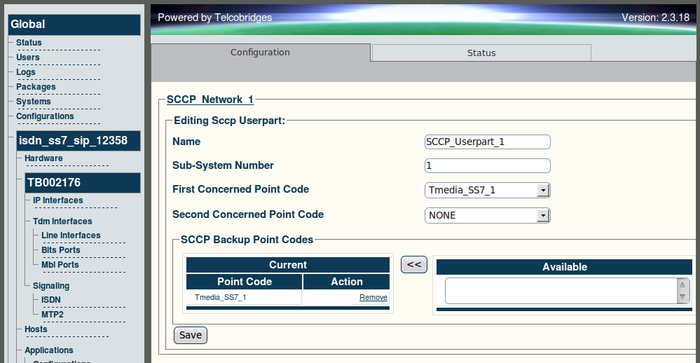

4. Set an SCCP Backup Point Code

  • Select a point code from the menu

  • Add the selection using the '<<' arrow button

  • Click 'Save'
  • Verify that the 'SccpUserpart was successfully updated' message appears
