Toolpack v2.3:Create an SCCP Stack

To create an SCCP stack

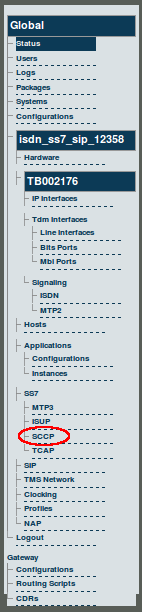

1. Select SCCP from the navigation panel.

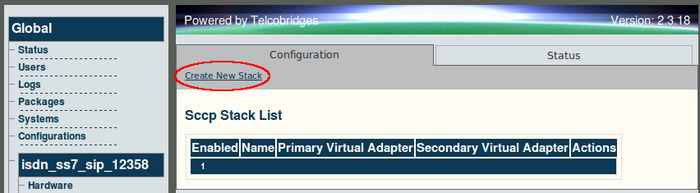

2. Click 'Create New Stack'

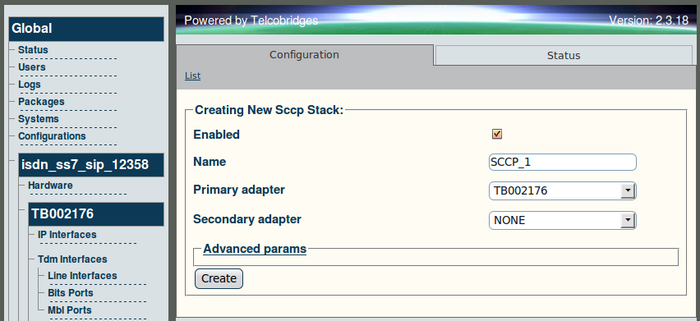

3. Provide a name for the SCCP stack

• Select one Tmedia unit as the primary to run the SCCP stack for the Tmedia network.
• Select another Tmedia unit as the secondary unit to run the SCCP stack
• Click 'Create' to save the SCCP stack

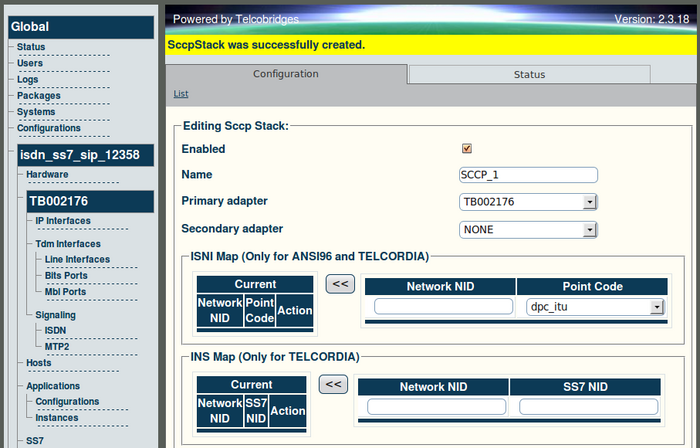

4. Verify that the 'SCCP Stack was successfully created' message appears.
