Toolpack v2.3:Create a TCAP Stack

To create a TCAP stack

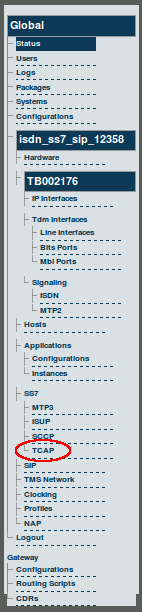

1. Select TCAP from the navigation panel.

2. Click 'Create New Stack'

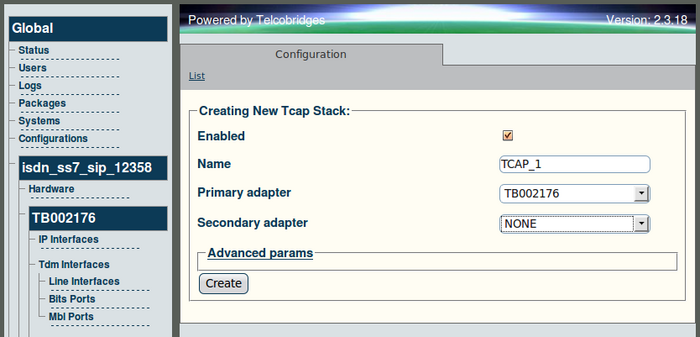

3. Provide a name for the TCAP stack

• Select one Tmedia unit as the primary to run the TCAP stack for the Tmedia network.
• Select another Tmedia unit as the secondary unit to run the TCAP stack
• Click 'Create' to save the TCAP stack

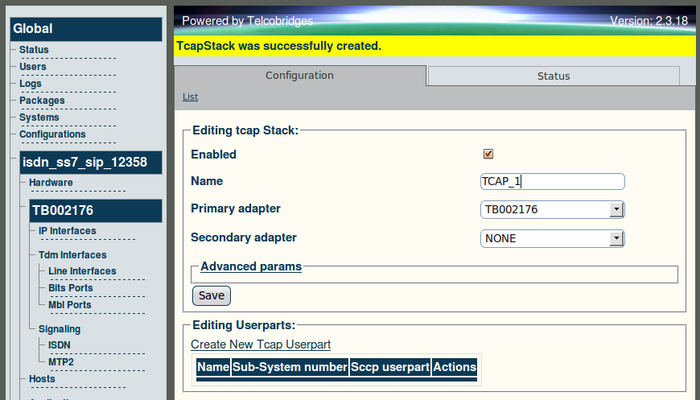

4. Verify that the 'TcapStack was successfully created' message appears.
