Toolpack v2.2:Verifying the Current Clocking Source

1. Select Clocking from the navigation panel.

2. Verify the number and sources of clocking signals.

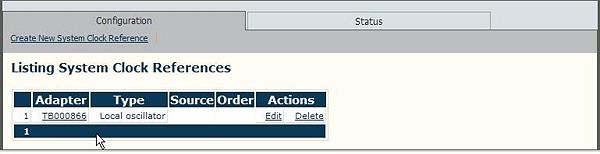

In this example, an internal clocking source is being used as the sole clocking source for the Tmedia system. It is originating from the Tmedia hardware adapter, named TB000866.
