Toolpack v2.2:Creating a Transport Server

Note: In order to employ SIP transport servers, the protocol that they will use to transport the SIP signaling traffic must be defined.

To create a transport server

1. Select SIP from the navigation panel.

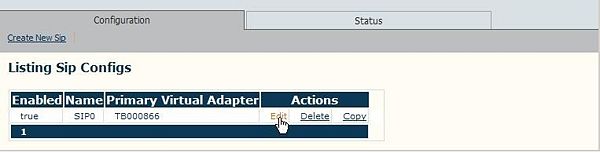

2. Select a SIP configuration and click 'Edit'.

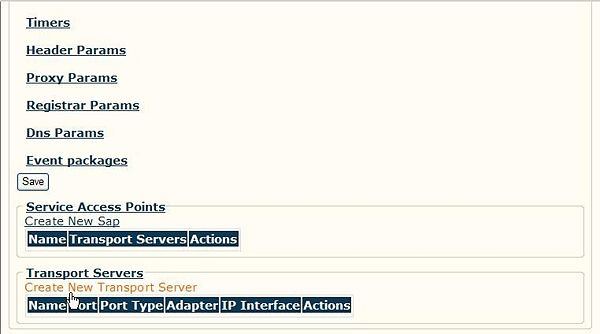

3. Click 'Create New Transport Server' from the SIP Configuration window.



4. Enter a name for the transport server.

  • Select a port type and number. This example uses UDP, port 53 for SIP traffic to the DNS server.
  • Click 'Create' to save changes.

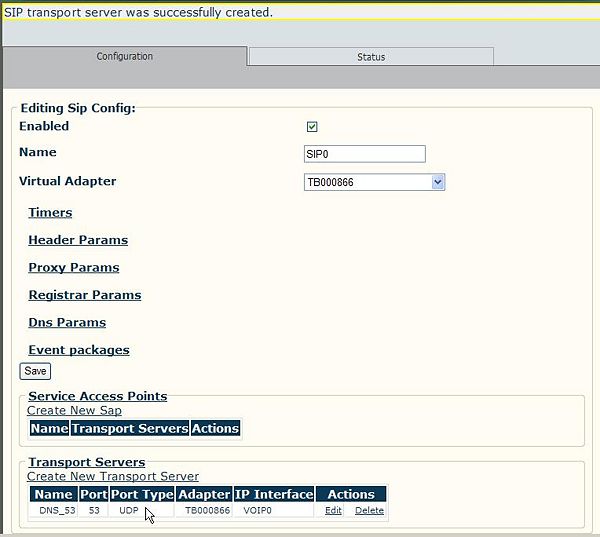

5. Verify that the new transport server is listed in the Transport Servers list.

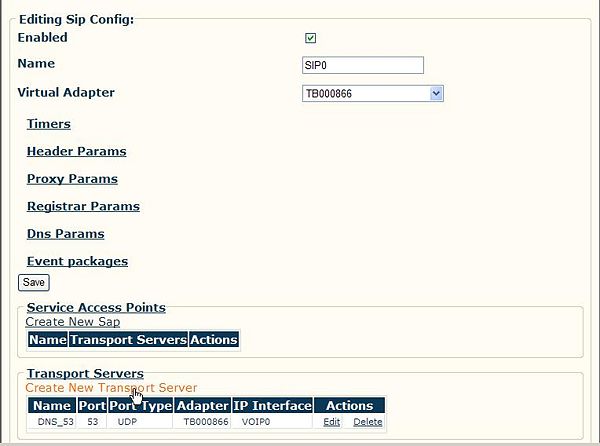

6. Click 'Create New Transport Server' to create a new transport server.

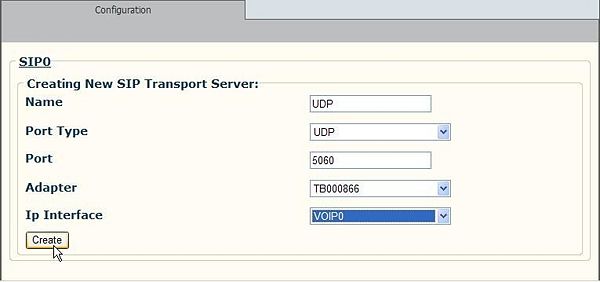

7. Create an additional transport server.

  • Enter a name for the transport server
  • Enter a port type and port number. In this case, select 5060 as the default SIP port.
  • Click 'Create' to save the configuration changes.

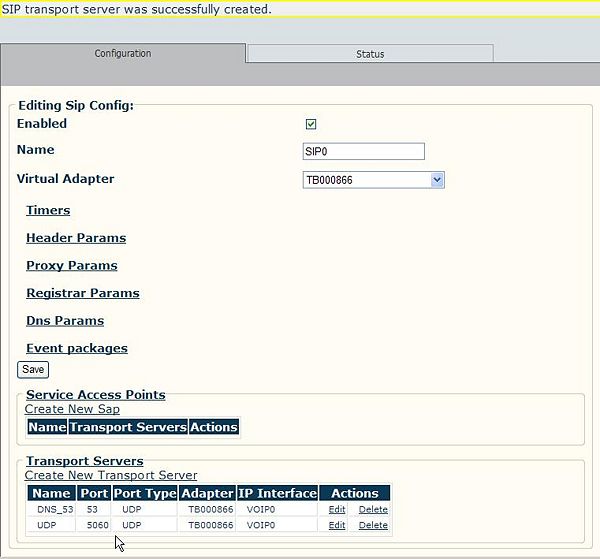

8. Verify that the new SIP transport server appears in the Transport Servers list.
