Toolpack v2.2:Creating a SIP Profile

To create a SIP profile / system resource profile

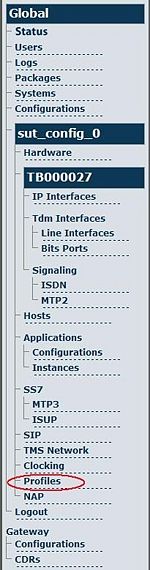

1. Select Profiles from the navigation panel.



2. Click 'Create New Profile' from the information panel.

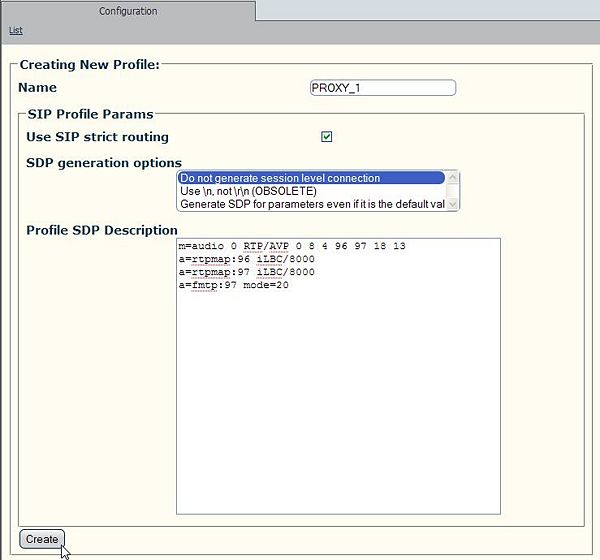

3. Enter a name for the profile. In this example PROXY_1 is entered.

  • Select a SDP generation option. The SDP description appears in the Profile SDP window.
  • You may input a customized Profile SDP Description to define which codecs are allowed.
  • Click 'Create' to save the changes



4. Select one or more DTMF relay schemes.

  • Select one or more DTMF schemes then click the << button to assign them to the current profile
  • Click 'Save'

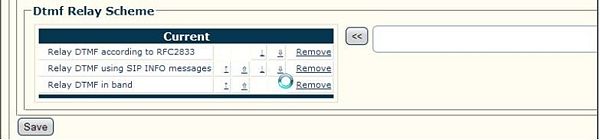

5. Validate the preferred order of DTMF relay schemes.

  • Use the up and down arrow keys to set the preferred order of the DTMF relaying scheme.
  • Click 'Save'

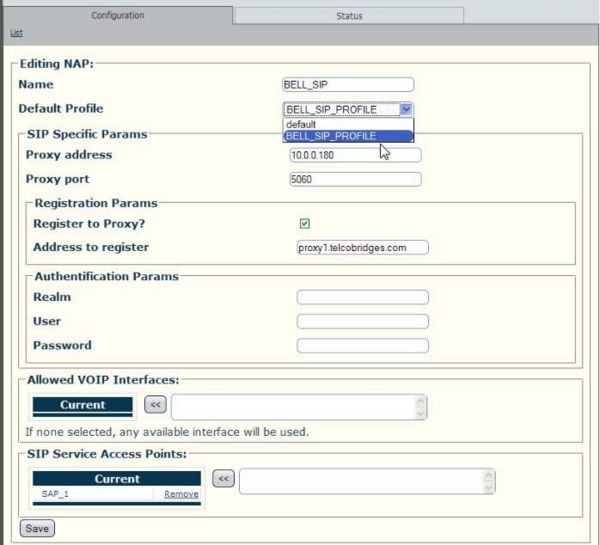

Note: Once a profile has been created, it can be assigned to one or more NAPs. See the figure below for an example:
