Status Menus:SS7 MTP3

Applies to version(s): v2.5, v2.6.

General and detailed status information about the SS7 MTP3 stack is accessible from the SS7 MTP3 tab of the Global Status view.

General view

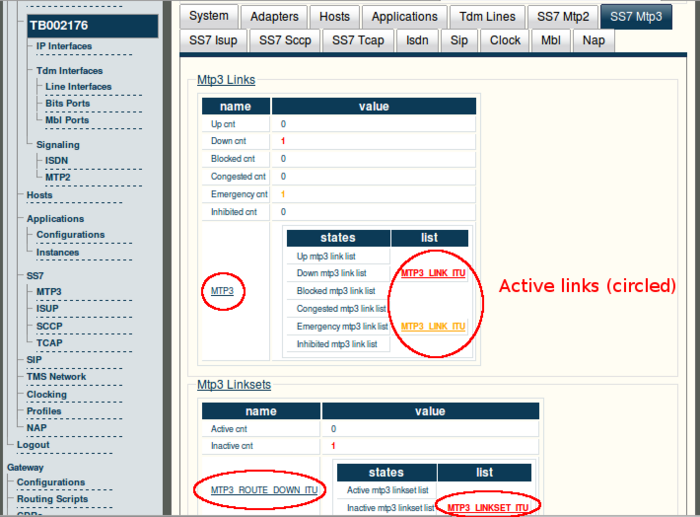

The SS7 MTP3 general view, shown below, provides information about the health of the MTP3 links. From this view you can know the status of MTP3 links by seeing if they are up or down. This general view provides links to other detailed status screens for the MTP3 configuration, its links, linksets, and routes.


SS7 MTP3 Detailed View

The SS7 MTP3 detailed view groups status information into four screens, as follows:

  • MTP3 Stack Status
  • MTP3 Linkset
  • MTP3 Link




MTP3 Stack Status

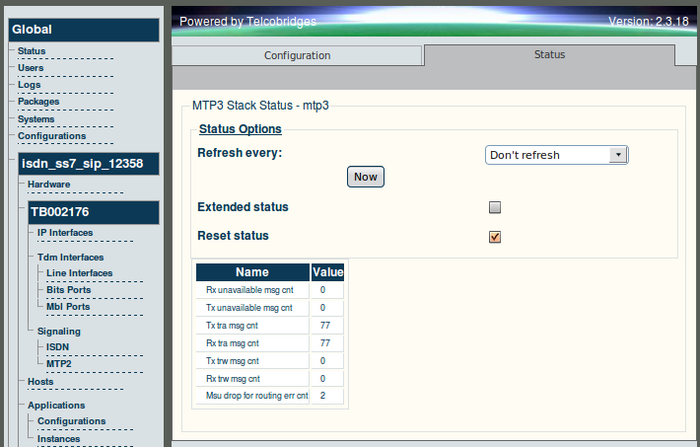

The MTP3 Stack Status, shown below, displays counters for a variety of status messages that in turn are used to indicate the current health of the MTP3 stack. This status screen is accessed from the MTP3 CFG 0 link of the General view, shown in the figure above. Counters may be reset from this screen to determine if a problem persists.

To reset the counters of this screen

1. Select the 'Reset status' check box.

2. Click 'Now'.




MTP3 Linkset Status

The Linksets status screen, accessible from a linkset link shown in MTP3 Network Status: Linksets Tab, groups status information under two tabs as follows:

  • Linksets
  • Links


MTP3 Linkset Status: Linksets Tab

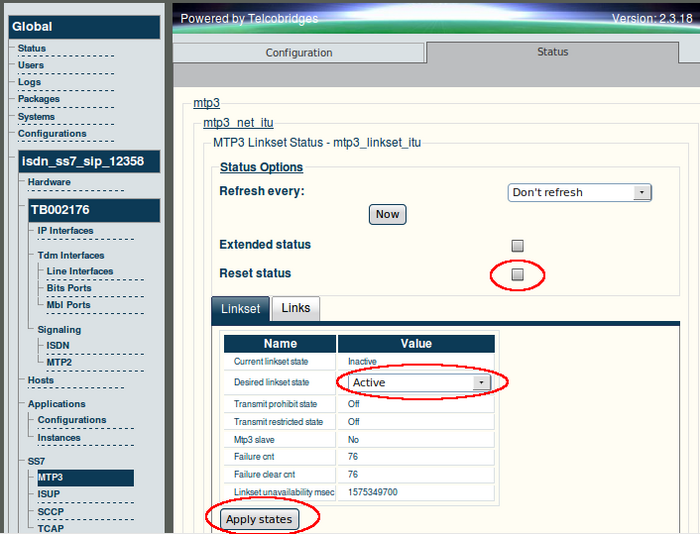

The Linkset tab of the MTP3 Network status screen, shown below, displays the detailed information of one MTP3 linkset, such as linkset state, configured values, and counters. From this screen the desired linkset state may be set to Active or Inactive, and counters may be reset.

To reset the counters of this screen

1. Select the Reset status check box.

2. Click Now.


To modify the Desired Linkset state

1. Select a linkset state

2. Click Apply States


MTP3 Linkset Status: Links Tab

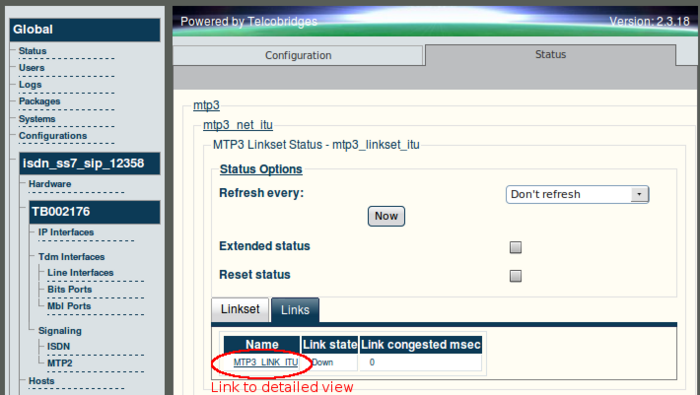

The Links tab of the MTP3 Network status screen, shown below, displays a listing of the MTP3 links that are used by a specific MTP3 Linkset. In the listing, the status of each link is displayed as well as a link congestion timer. Accessing a particular MTP3 Link displays its detailed information.




MTP3 Link Status

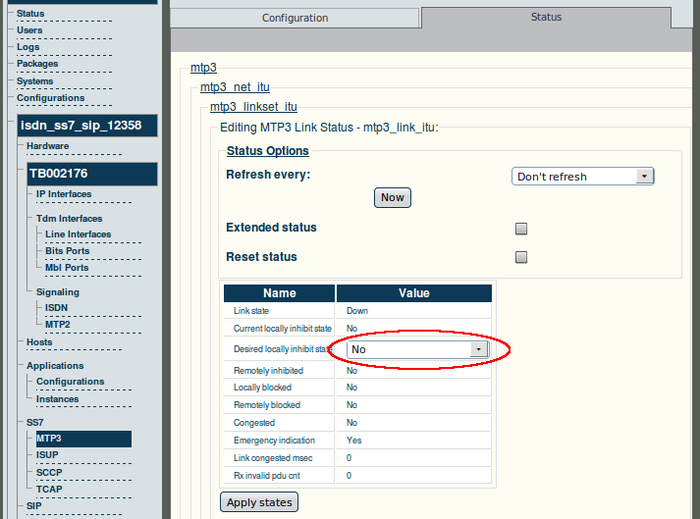

The MTP3 Link status screen, shown below, displays the detailed information about one MTP3 link, such as the link state, configured values, and counters. Hovering over fields causes help bubbles to display. For example, in the figure below, an information bubble is displayed for a counter of the number of invalid Protocol Data Units (PDUs) received.

To reset the counters of this screen

1. Select the 'Reset status' check box.

2. Click 'Now'.


To modify the Desired Locally Inhibited state

1. Select a value.

2. Click 'Apply States'.
