TCAP Status
Applies to version(s): v2.9, v2.10
This article illustrates how to view SS7 TCAP status and to set a periodic refresh of the TCAP protocol stack. This is done from the Status menu and the Navigation panel.
1- Click Status in the navigation panel.
2- Click the SS7 TCAP tab.
The status of the TCAP protocol stack is displayed.

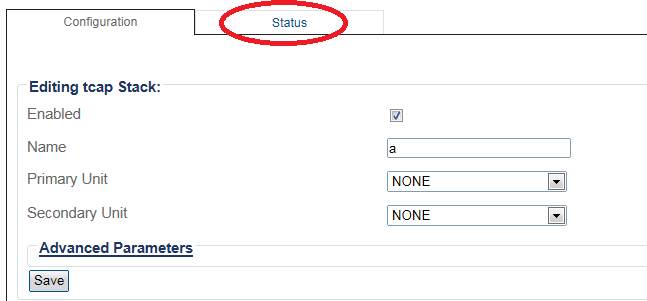

1- Click TCAP from the navigation panel.
2- Click the Status tab.

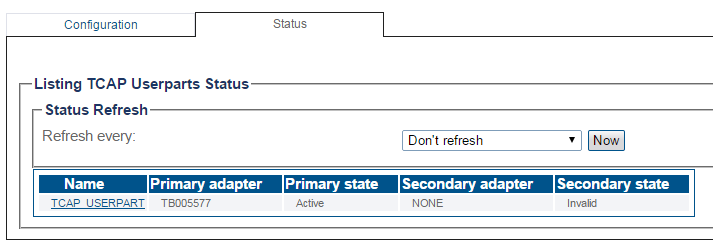

3- To configure a periodic refresh of the TCAP status, select a value from Refresh Every.
Path
/configurations/@[configuration_name]/tcap_stacks/@[tcap_stack]/status
