MTP3 Status
Applies to version(s): v2.9, v2.10
This article illustrates how to view MTP3 status and to set a periodic refresh of the MTP3 protocol stack. This is done from the Status menu and the Navigation panel.
1- Click Status in the navigation panel.
2- Click the SS7 MTP3 tab.

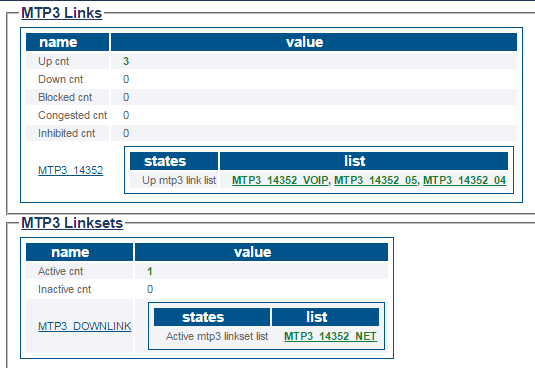

The status of the MTP3 protocol stack is displayed.
1- Click MTP3 from the navigation panel.
2- Click the Status tab.
3- To configure a periodic refresh of the MTP3 status, select a value from Refresh Every.
Path
/configurations/@[configuration_name]/mtp3_stacks/@[mtp3_name]/status
