Creating ISUP CIC Groups

Applies to version(s): v3.0

A CIC represents a physical timeslot between two SS7 nodes. Both of those nodes must commonly agree upon a CIC numbering scheme.

Once you have created an ISUP interface, you must create a new ISUP circuit identification code (CIC) group for your system.

To create an ISUP CIC group:

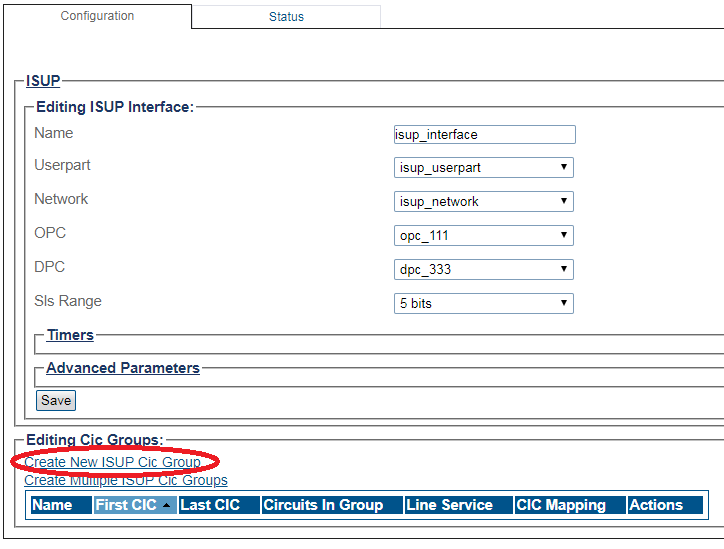

1- Click Create New Isup Cic Group in the ISUP interface configuration window (a number of groups can be created at once by clicking Create Multiple New Isup Cic Group)

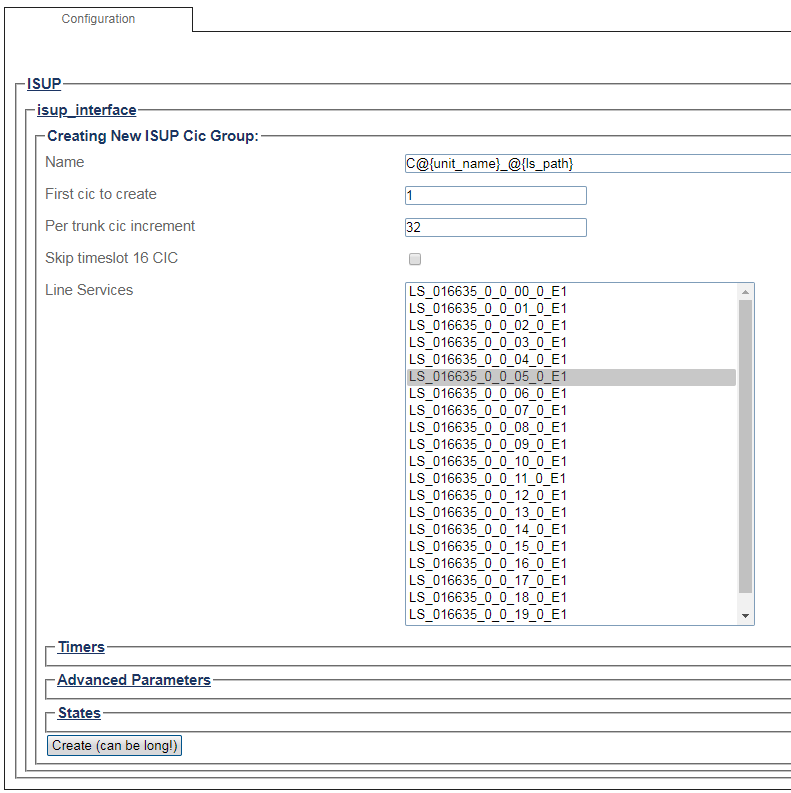

2- Configure the new ISUP CIC group:

• Enter a name for the group
• Enter a number for the first CIC in the group (this value must follow other CIC group values, and not overlap)
• Select a line service
• Click Create

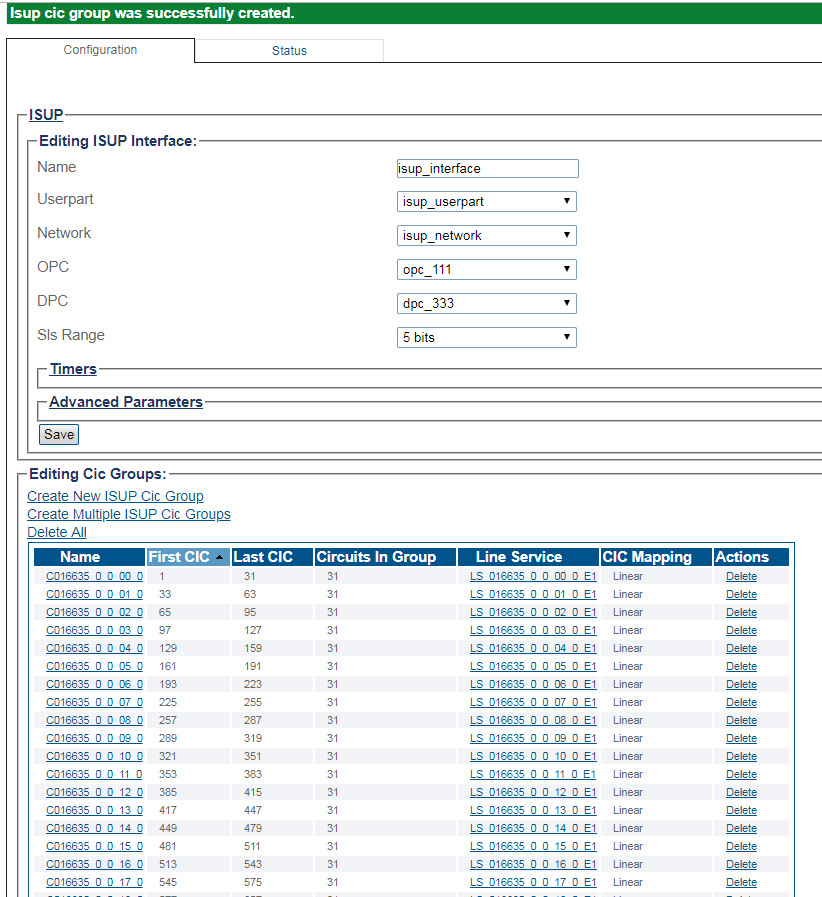

3- Verify that the "IsupCicGroup was successfully created" message appears

List of Parameters

• Name
• First CIC
• Line Service
• Skip timeslot 16 CIC
• Timeslots

• T3 Timer
• T12 Timer
• T13 Timer
• T14 Timer
• T15 Timer
• T16 Timer
• T17 Timer
• Circuit Validation Timer

• CIC Mapping
• Call Control
• Generate exit message
• Trunk Group Number
• Location Id
• Cic Options
