Creating a NAP (ISUP)

Applies to version(s): v3.0

A Network Access Point (NAP) represents the entry point to another network or destination peer.

After you have created an ISUP CIC group, you must create a network access point.

To create a network access point (NAP):

1- Click NAPs in the navigation panel

2- Click Create New NAP

3- Configure the new NAP:

• Enter a name for the NAP
• Select a user-created profile, if not, select default
• Click Create

4- Verify that the NAP was successfully created message appears

5- Associate the recently created CIC Group with the NAP:

• Select the range of available CIC groups.
• Click the "<<" button to add the CIC group to the list

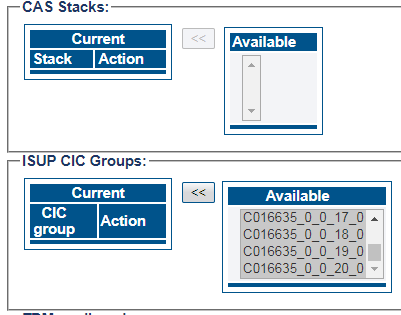

Before:

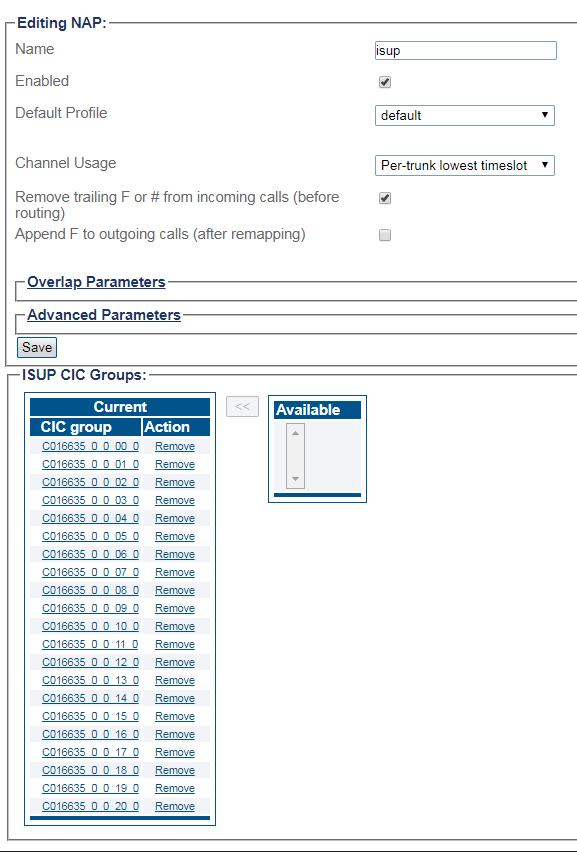

After:

6- Verify that the "NAP was successfully updated" message appears

List of Parameters

• Name
• Default Profile
• Channel Usage

Advanced Parameters-Call rate limiting

• Maximum calls per second
• Maximum call burst
• Maximum simultaneous incoming calls
• Maximum simultaneous outgoing calls
• Maximum simultaneous total calls
• Processing delay low threshold
• Processing delay high threshold
