Creating an M3UA Configuration

Applies to version(s): v3.0

To create an M3UA configuration:

1- Click M3UA in the navigation panel:

2- Configure the M3UA service for IPSP:

• Enter a name for the configuration
• Select Signalling Gateway Process (SGP) as the node type
• Click Create

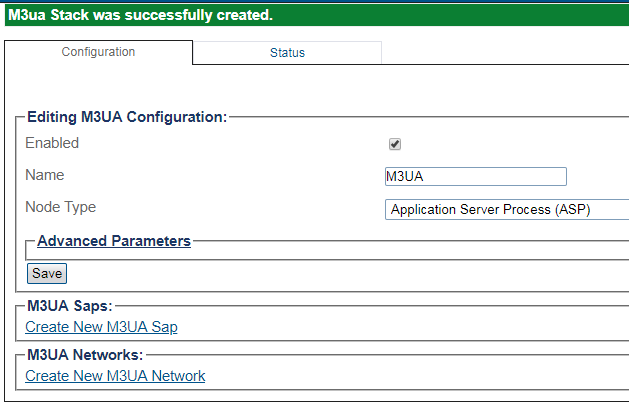

3- Verify that the "M3ua Stack was successfully created" message appears.

List of Parameters

• Name
• Node Type

• Only one hardware unit is active
• Destination Restrict supported
• Congestion level 1
• Congestion level 2
• Congestion level 3
• Restart Timer
• MTP3 Status Timer
• AS Pending Timer
• Heartbeat Timer
• ASP Up Timer
• ASP Down Timer
• ASP Messages Timeout
• DAUD Timer
• DRKM Timer
• Number of DKRM messages
• DUNA Settle Timeout
• Sequence Control Timer
