Creating an N+1 Group

Applies to version v2.7

Once the N+1 patch panel is created, you must create an N+1 group to assign each hardware unit to their correct position.

To create an N+1 Patch Panel:

1- Click N+1 in the navigation panel

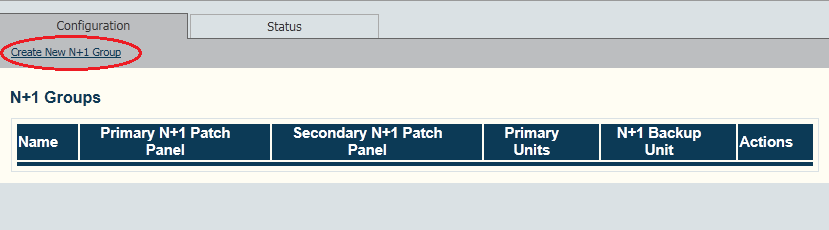

2- Click Create New N+1 Group

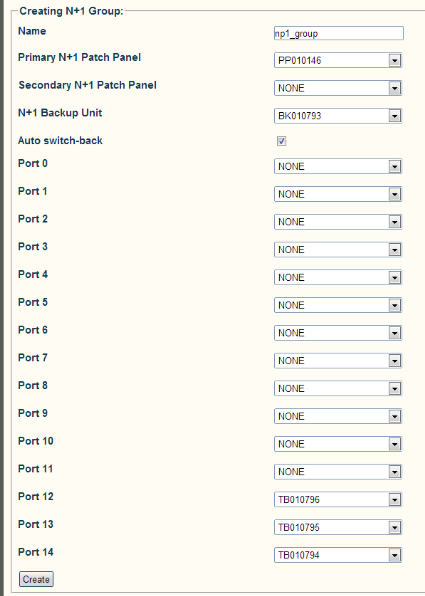

3- Set the correct serial number of a unit to the correct patch panel port.

• Click Create

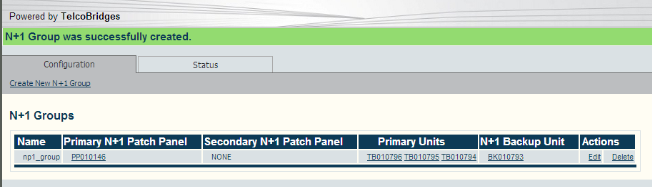

4- Verify that the newly added N+1 patch panel appears in the N+1 Groups list.
