MTP2:Advanced parameters

When creating a MTP2 link, a number of additional, more advanced parameters can be specified:

• Max Outstanding Frames
• Proving Emergency
• Max Frame Length
• Discard Frame In Congestion
• Signal Unit Error Rate Threshold
• Alignment Error Rate Emergency Threshold
• Maximum Alignment Attempt
• Flow Control Number Of Message Start
• Flow Control Number Of Message End

ITU and ANSI common link configurations

The following parameters refer to ITU and ANSI common link specific configurations:

• Error Correction
• Normal Proving
• Link Status Signal Unit Length
• Alignment Error Rate Normal Threshold
• Maximum Number Message Retransmission Cyclic Error Type
• Maximum Number Bytes Retransmission Cyclic Error Type

Screenshot

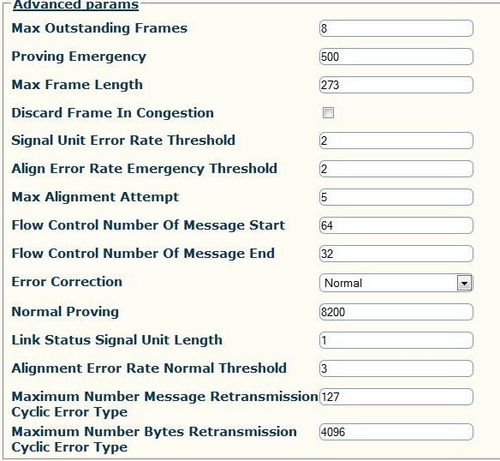

The following screenshot presents the various advanced parameters for the MTP2 link.
