Configure Fax Passthrough

This article applies to:	Product	Version
	Tmedia	2.8

To enable passthrough:

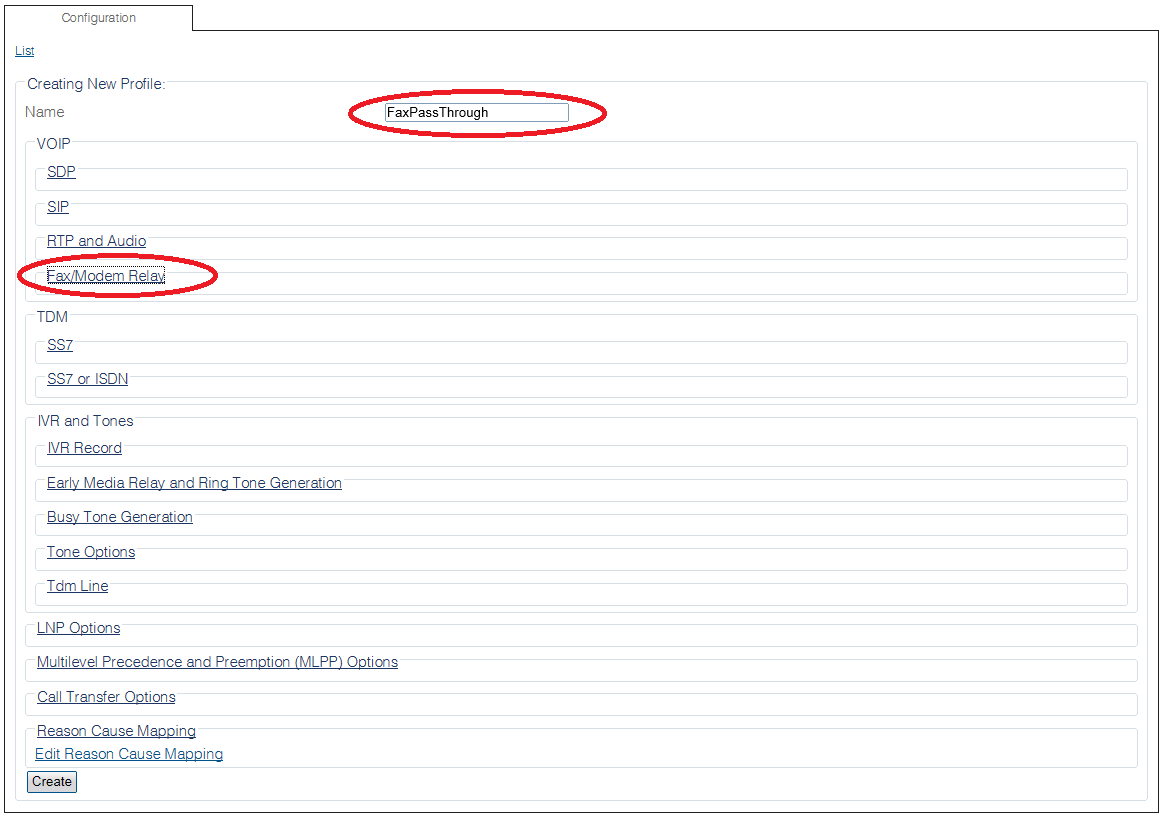

1. Select Profiles from the navigation menu.

2. Click Create New Profile

3. Enter a name for the Fax Profile.

• Click Fax/Modem Relay to expand the view.

4. Configure the settings:

• Set Detection Mode to Standard.
• Set Relay Mode to Passthrough.
• Check the Switch to FAX relay upon CNG tone option.
• Set Detection type to "Silence Suppression off"
• Verify the Codec is the same as the remote end.
• Click Create

5. Verify that the Profile was successfully created message is displayed.
