Configure Fax NSE

This article applies to:	Product	Version
	Tmedia	2.8

To enable NSE:

1. Select Profiles from the navigation menu.

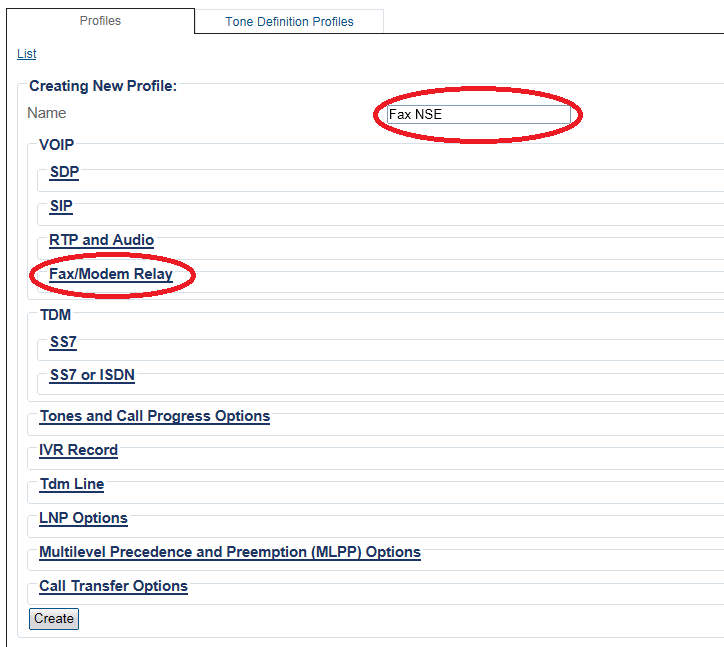

2. Click Create New Profile

3. Enter a name for the Fax Profile.

• Click Fax/Modem Relay to expand the view.

4. Configure the settings:

• Set Enable Fax/Modem Relay to enabled.
• Set Detection Mode to Standard.
• Set Relay Mode to Passthrough.
• Select a codec. For example silence suppression
• Set Use NSE to enabled

5. Verify that the Profile was successfully created message is displayed.
