Call Flow

Revision as of 09:51, 12 February 2010 by Cbilodeau (talk | contribs) (Creation)
(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)

Call flows are call scenarios that shows the interaction between the CAF classes and the protocol specific messages.

Scenarios

Here are example of call flows:

Basic call flow

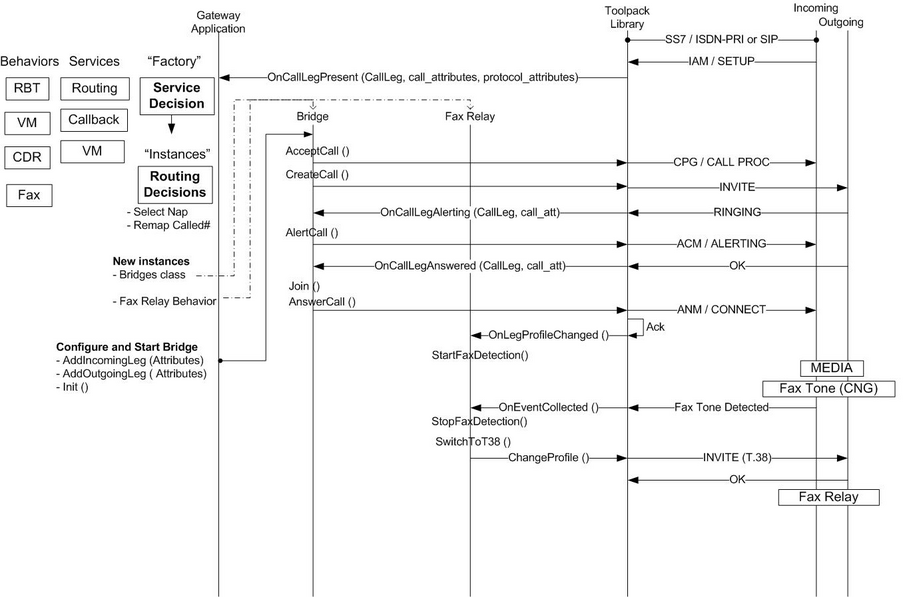

Fax relay call flow
