To create an M3UA route:
1. Click "Create New M3ua Route" in the M3UA network configuration window:

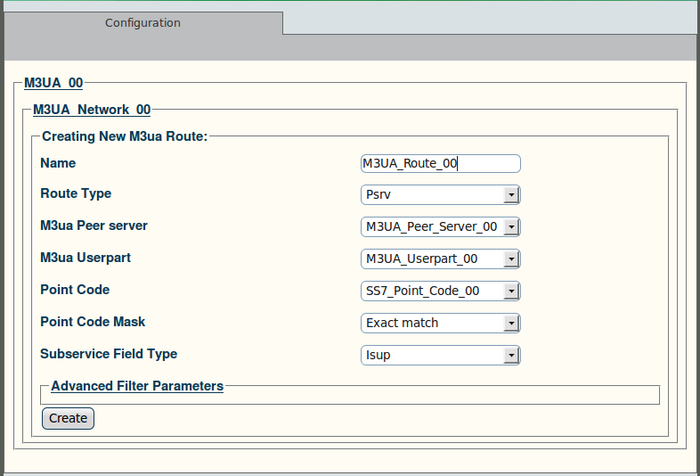

2. Configure the new M3UA SG route:
- Enter a name for the route
- Select a route type:
- Select an M3UA peer server (choose Remote Peer server, if associated with an OPC, select NONE, if using DPC)
- Select an M3UA user part (if associated with a DPC, select NONE for OPC)
- Select a point code
- Select a point code mask: (Recommanded value: Exact match)
- Select a sub-service field type:
- Click "Create" to finalize the configuration

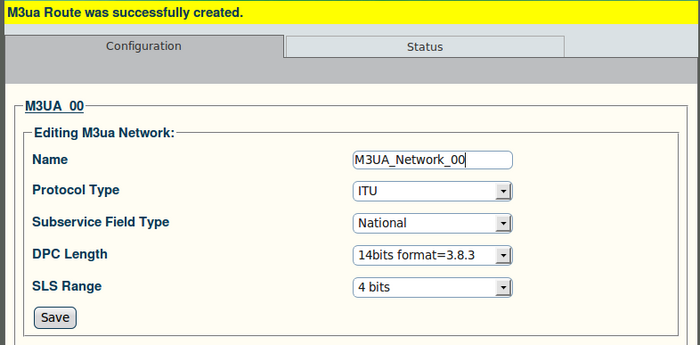

3. Verify that the "M3ua Route was successfully created" message appears:
