Toolpack:Configuring DNS Parameters B: Difference between revisions

Revision as of 15:46, 12 November 2014

Applies to version(s): v2.8

1- Enable Advanced Transport Server Configuration in the SIP configuration window.

2- Click Advanced

3- Create a new dedicated transport server (not part of any SAP).

4-Select from which interface and port the DNS request will be sent

5- Click DNS Params in the SIP configuration window.

6- Verify that the 'SipCfg was successfully updated' message is displayed.

@@ Line 5: / Line 5: @@
 - Enable Advanced Transport Server Configuration in the SIP configuration window.
-* Make sure the checkbox is selected
+* Click '''SIP''' in the navigation panel.
+[[Image:ConfigureDnsParams_0.png]]

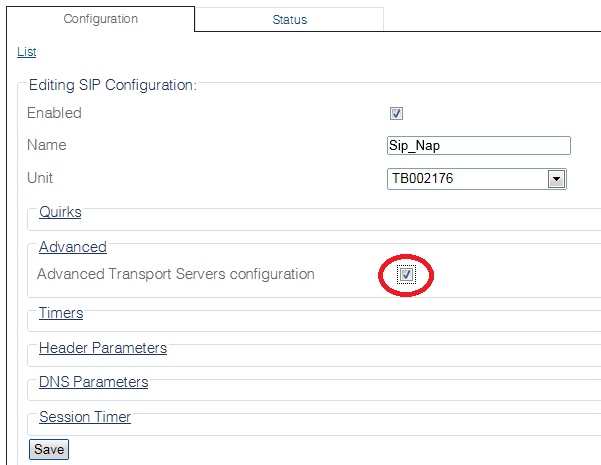

+- Click '''Advanced'''
+* Set the '''Advanced Transport Servers configuration''' checkbox.
 * Click '''Save'''
-[[Image:ConfigureDnsParams_0.png]]
+[[Image:ConfigureDnsParams_1.png]]
+- Create a new dedicated transport server (not part of any SAP).
+* Click '''Create New Transport Server'''
+[[Image:ConfigureDnsParams_2.png]]
-- Create a new dedicated transport server (not part of any SAP).
+-Select from which interface and port the DNS request will be sent
-* Select from which interface and port the DNS request will be sent
 * Click '''Create'''
-[[Image:ConfigureDnsParams_1.png]]
+[[Image:ConfigureDnsParams_3.png]]
-- Click DNS Params in the SIP configuration window.
+- Click '''DNS Params''' in the SIP configuration window.
 *Enable the DNS, cache and ENUM support (if required)
 *Enter the IP address of the DNS server
-*Select the transport server
 *Click '''Save'''
-[[Image:ConfigureDnsParams_2.png]]
+[[Image:ConfigureDnsParams_4.png]]
 - Verify that the 'SipCfg was successfully updated' message is displayed.
-[[Image:ConfigureDnsParams_3.png]]
+[[Image:ConfigureDnsParams_5.png]]
