Revision as of 03:48, 19 July 2012
Session Initiation Protocol with encapsulated ISUP, which is known as SIP-I. It specifies a set of capability for interworking ISUP networks with SIP networks. SIP-I is an extension to existing SIP protocol to carry ISUP specific messages information on a SIP network.
Supported SIP-I Specification
TelcoBridges supports the Profile C (SIP-I) of ITU Q.1912.5.
The following items are not supported:
- Precondition (RFC3312)
- Reception of an INVITE without SDP
- SIP-I digit overlap
- SUS/RES ISUP message to SIP INFO message
- SIP to SIP-I interworking
TelcoBridges and SIP-I
SIP-I support starts from release 2.6.23. Please refer to
TMG-CONTROL version 2.6
How do you enable SIP-I support
- SIP-I is enabled in a per-NAP basis. The SIP MIME body will be taken care of for both incoming or outgoing NAPs once it is enabled.

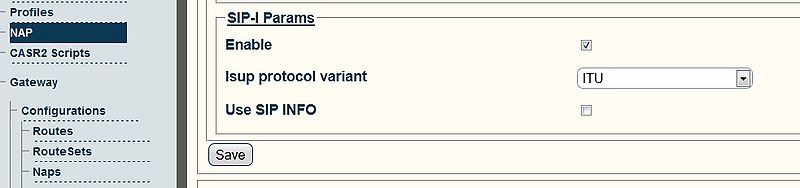

- Go to NAP->Edit->SIP-I Params->Check "Enable".
- Save and activate your configuration.
External Sources
- ITU Q.1912.5 Interworking between SIP and BICC/ISUP
